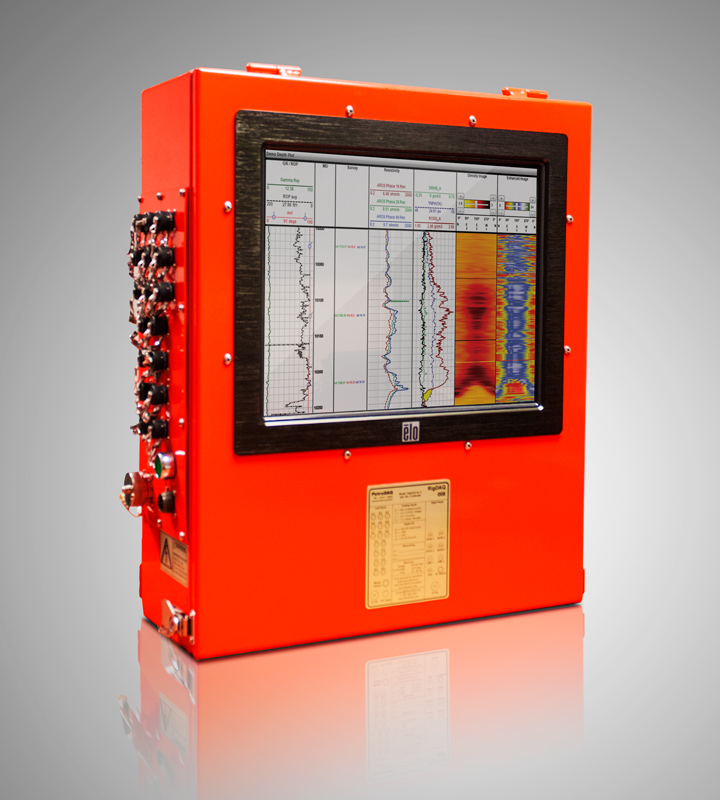

Rig Server

The PetroDAQ Rig Server is a high performance server for digital data collection, aggregation and visualization.

All the data collection and aggregation functionality is done by the PetroDAQ Data Aggregation System (PetroDAS), with support for all format and protocols used in the oil and gas drilling industry.

All the data collected by PetroDAS is delivered to a high performance WITSML store.

Visualization is done locally on the built-in screen and remotely over networks using the PetroDAQ Realtime Viewer allowing all rig users to visualize the data in real time.

Rig Server Specifications

Processor	Intel i7 Quad-Core @ 3Ghz
RAM	8GB standard, up to 32GB
Storage	60GB Industrial Solid State drive, optional 120GB
Standard Digital I/O	2 x Ethernet RJ-45 ports 2 x USB 2.0 ports 4 x RS-485/422/232 DB-9 ports 1 x ¼" Audio port for alarms
Screen	17" Touchscreen with 1280 x 1024 resolution
